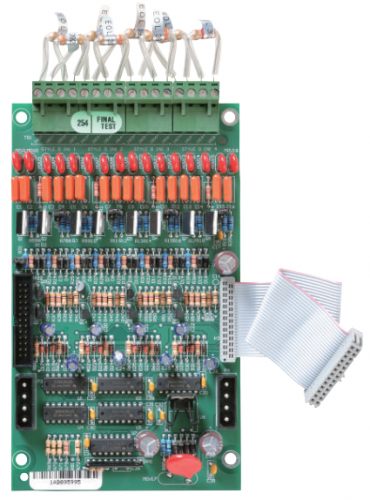

EIGHT INITIATING CIRCUIT MODULE NK-DM-8A

General

• The NK-DM-8A Module provides the SPERA Series Fire Alarm Control panels with up to 8 Class B (Style B) or 4 Class A (Style D) Initiating Circuits which can be confgured as either Alarm, Supervisory, Waterflow or Trouble zones. Each circuit can handle both powered devices such as smoke detectors and non-powered devices such as heat detectors, pull stations, waterflow devices, tamper switches, etc.

• Eight Class B (Style B) or 4 Class A (Style D) Initiating Circuits which can be confgured as Alarm, Supervisory, Waterflow or Trouble Circuits.
•  Programmable as Supervisory Circuit for Latching and Non-Latching.
•  All circuits are power limited for use with limited energy cable.
•  Removable terminal blocks for ease of wiring and servicing.
•  Extensive transient protection on all circuits
•  Supplied with 4 Hex Spacers for mounting on the main chassis .
