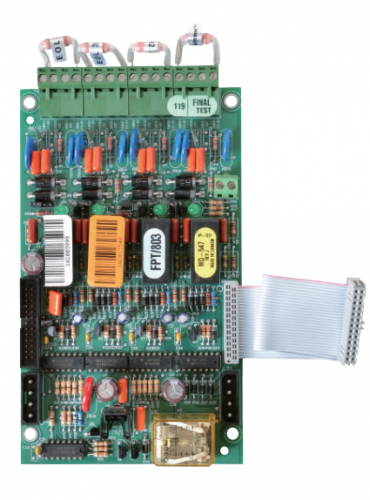

FOUR NOTIFICATION APPLIANCE CIRCUIT MODULE NK-SGM-4A
- Tổng Quát
- Tài Liệu
- Hỗ Trợ
Chuyên Mục:
Optional Modules
Description
- The NK-SGM-4A Module provides the SPERA Series Fire Alarm Control panels with up to 4 Class A or B (Style Z or Y) Notifcation Appliance Circuits (NAC).
- Four Class A/B (Style Z/Y) NAC Circuits.
- Each NAC Circuit is rated at 1.7 Amps.
- Each NAC Circuit can be confgured as NonSilenceable (Steady) or Silenceable.
- Outputs resound on subsequent alarm.
- LEDs (Amber) provided for indication of NAC Circuit trouble.
- Programable to any input circuit.
- All circuits are power limited for use with limited energy cable.
- Removable terminal blocks for ease of wiring and servicing.
- Extensive transient protection on all circuits.
- Supplied with 4 Hex Spacers for mounting on the main chassis .
